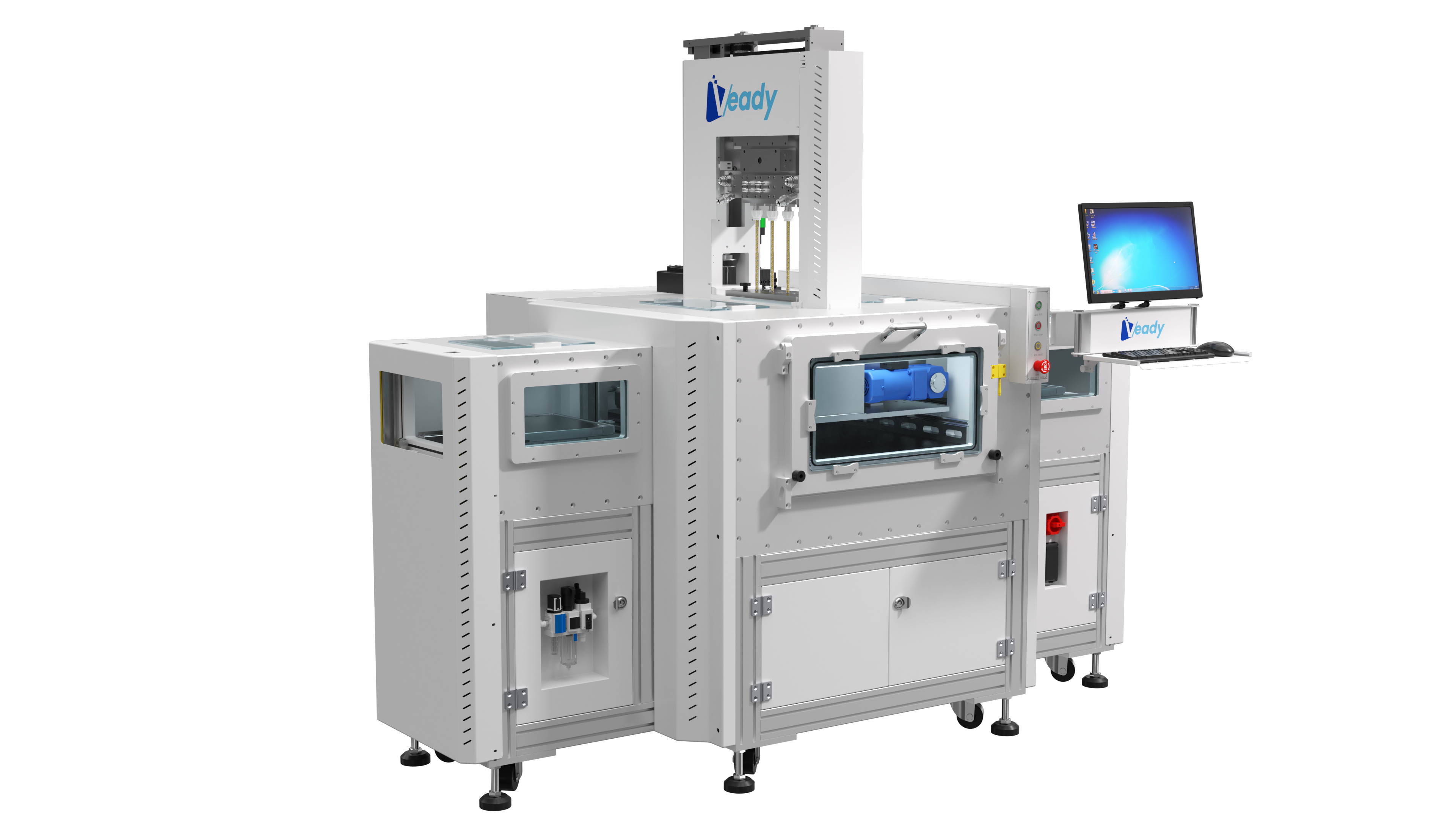

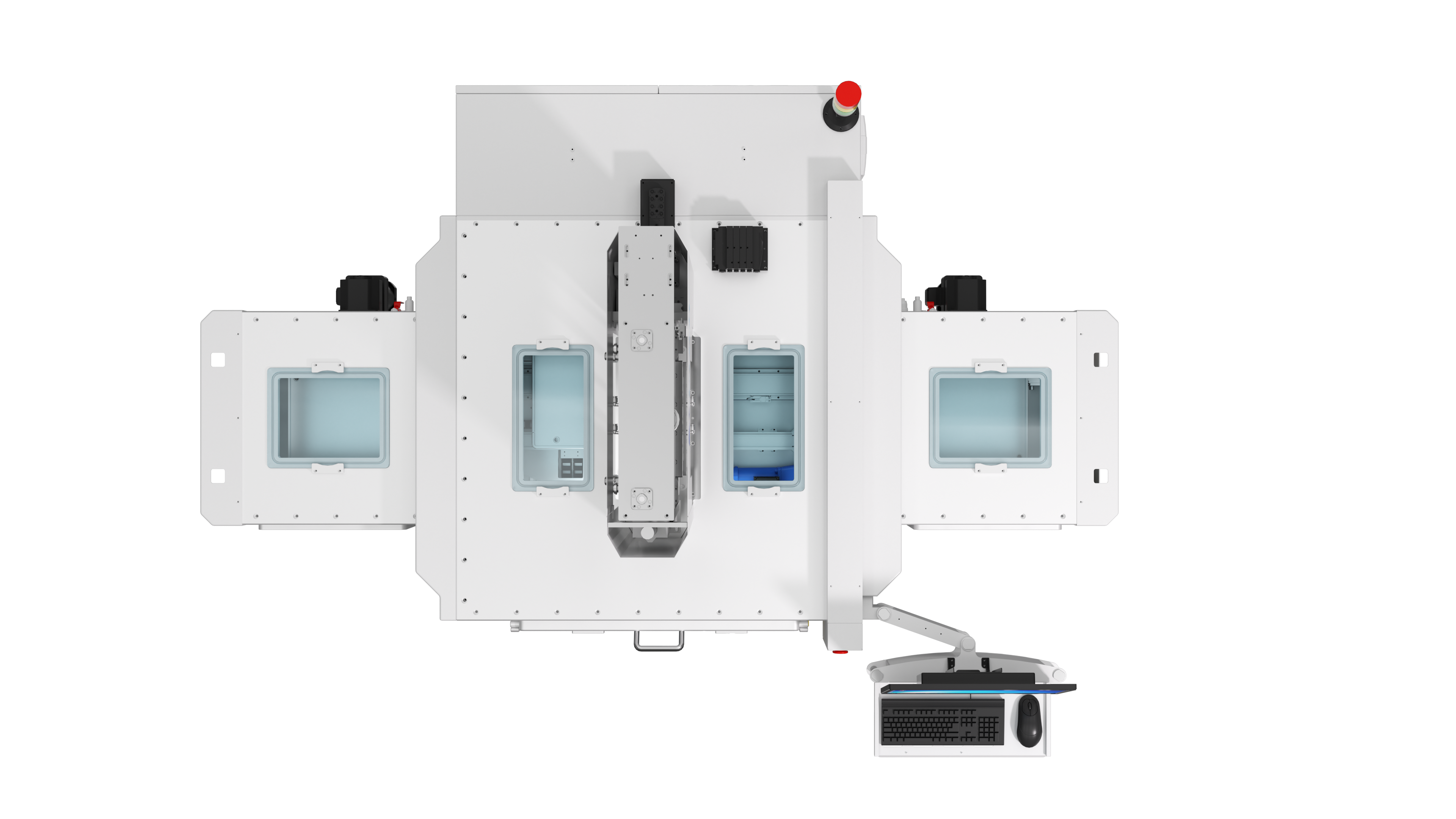

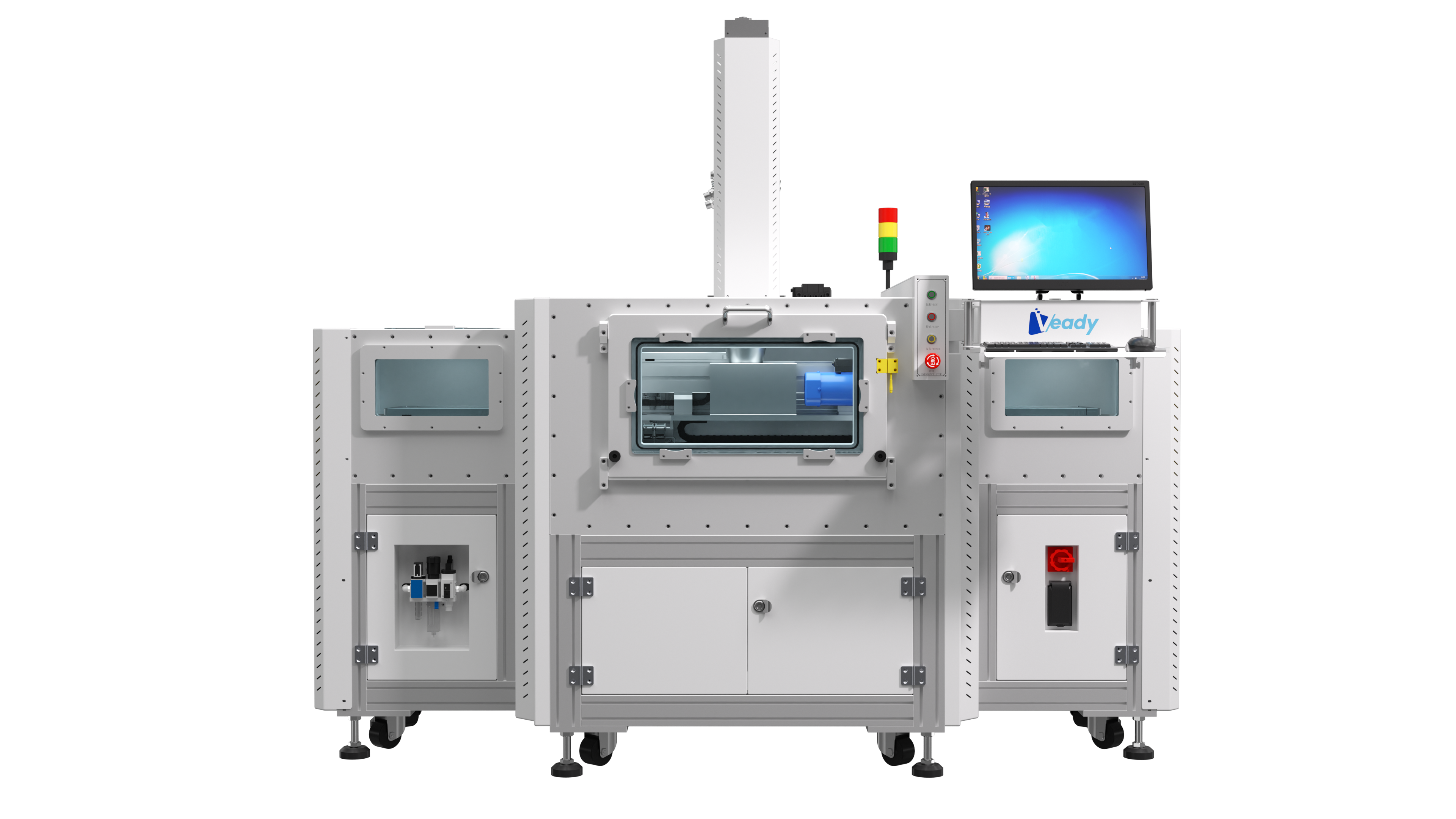

Product Features:
Vacuum material preparation system and three-axis motion module support high-precision potting with multiple trajectories. Adopting PLC + PC industrial computer control, it enables production data management and fully automatic assembly line operations.
Specifications：
|
Equipment Name |
Automatic Vacuum Potting Machine |
|
Model Number |
VPS-Customized |
|
Effective Stroke |
X=550*Y=450*Z=150mm |
|
Vacuum Pressure |
2mbar |
|
Vacuum System |
100-300m3/h |
|
Proportion Precision |
≤±1% |
|
Dispensing Precision |
≤±1% |
|
Dispensing Speed |
1-10g/s |
|
Power Rating |
AC380V、50Hz、12.5KW |
|
Operating Air Supply |
0.5-0.7Mpa |
|
Overall Dimensions |
L=2300*W=1400*H=1850mm |
|
Machine Weight |
Appx. 1200kg |
Suitable Adhesives：Epoxy resin, polyurethane, silicone gel, thermally conductive silicone, organic potting adhesive, and other two-component proportioning and mixing materials.
Product Applications：Automotive electronics, IGBT modules, capacitors, new energy motors, high-voltage coils, ignition coils, electromagnetic coils, motor stators, sensors, etc.
