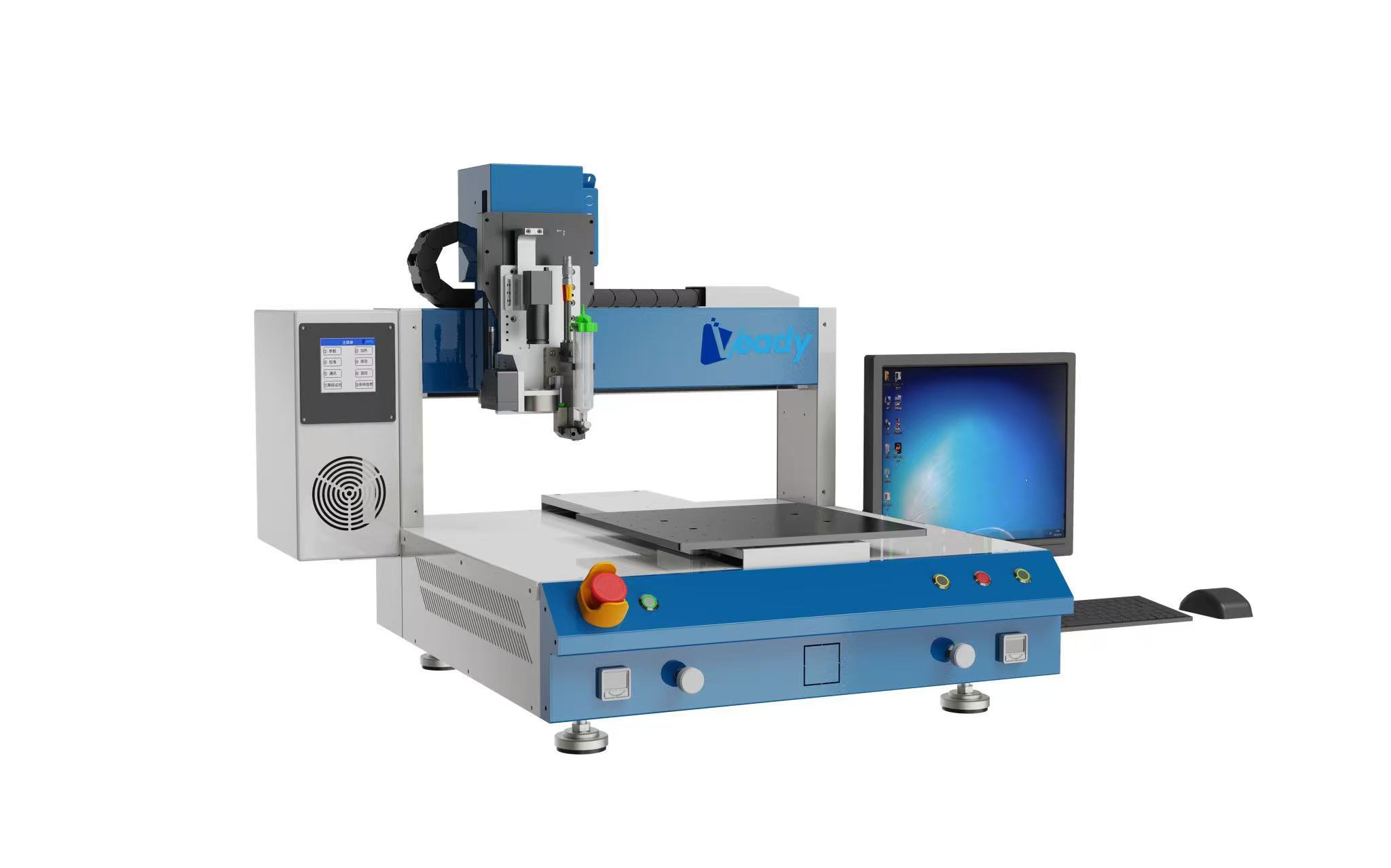

Desktop Visual Dispensing Machine

Precision Automation for Industrial Production

Designed for engineers and production specialists requiring exact fluid control, this automated dispensing system integrates advanced visual programming to facilitate complex dispensing operations. The machine supports diverse dispensing modes such as syringe, jet valve, piezo valve, and auger valve, accommodating various media and viscosities. Its compact desktop form factor enables deployment in space-constrained manufacturing environments, especially electronics assembly and prototyping, while maintaining professional-grade reliability demanded by modern production workflows. This solution effectively addresses the need for repeatable accuracy and process flexibility, critical to end-user quality assurance.

Advanced Technical Features Ensuring Exact Results

Equipped with servo or linear motors, the dispensing platform achieves smooth, precise movements with repeatability up to ±0.01mm. Functionality includes automatic calibration, barcode and fiducial mark scanning for positional verification, and Z-axis laser height compensation, which maintains consistent dispensing height across uneven surfaces. Operating on a Windows industrial PC with vision-based programming software, users benefit from an intuitive yet powerful interface for customized dispensing paths. Models vary in travel ranges up to 500×500×100mm and support payloads up to 10 kg on the Z-axis, allowing integration with multiple dispensing valves. These technical specifications underline its strength as a versatile glue dispensing machine optimized for demanding industrial tasks.

Industry-Specific Applications and Production Integration

This glue dispensing machine is suitable for precise adhesive application in electronics manufacturing, medical device assembly, and high-tech prototyping sectors. Its capability to perform automatic visual inspections and barcode scanning supports stringent quality control protocols, ensuring compliance with production standards. The compact desktop footprint facilitates integration into existing assembly lines or standalone stations requiring fast dispensing cycles and multi-axis control. By enabling consistent adhesive volumes and reducing material waste through precise metering, it contributes directly to improved yields and process efficiencies. As a solution offered by established glue dispensing machine manufacturers, it supports diverse production environments requiring high repeatability and adaptability.

Product Features:

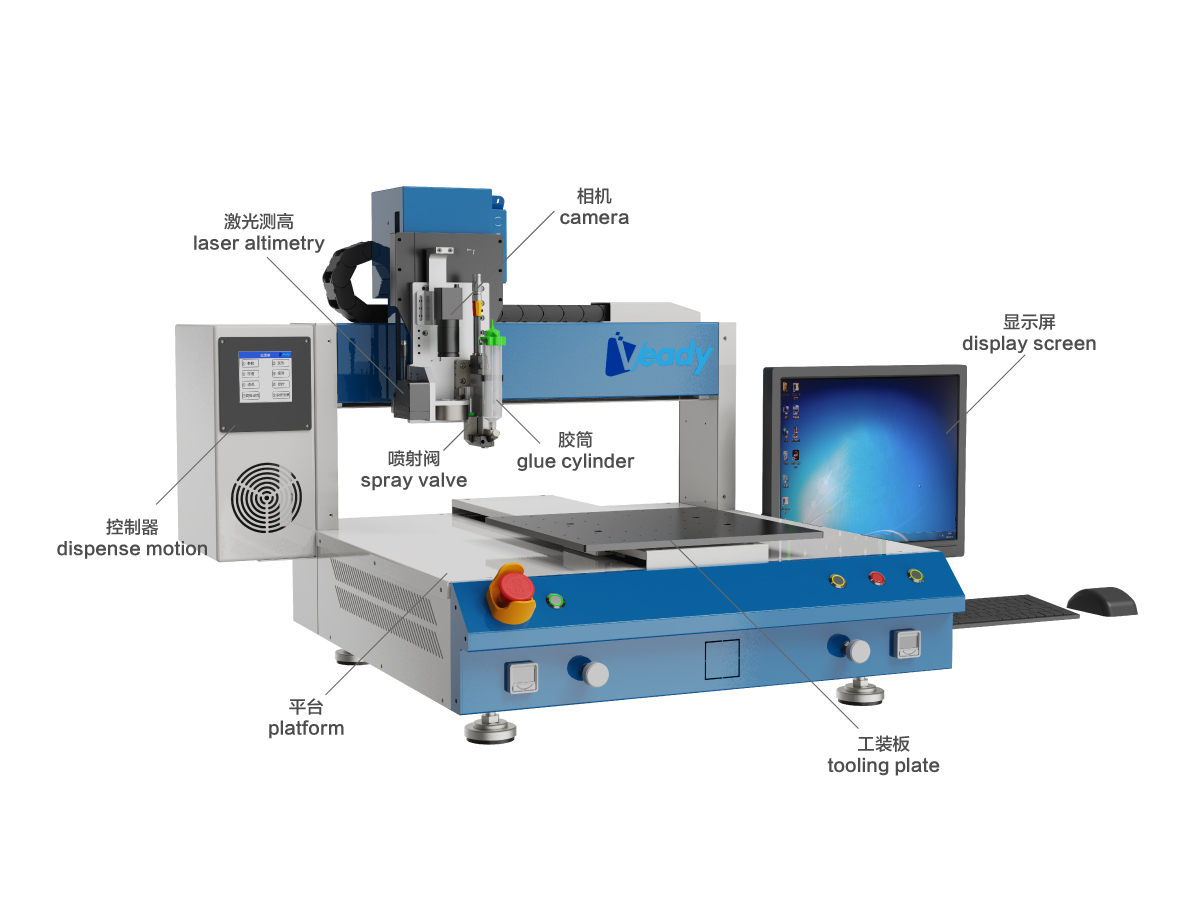

The SJ Series Desktop Visual Dispensing Machine can be equipped with automatic calibration and appearance inspection, barcode and fiducial mark scanning, and Z-axis laser height compensation. Its powerful functionality enables it to meet dispensing requirements across various scenarios.

Structural and System Design Superiority

The design of this desktop unit reflects modular mechanical architecture optimized for integration into various production systems. Utilizing high-precision servo or linear motors, the automated dispensing system delivers stable motion control with minimal maintenance needs. Features such as the vision-based programming interface, barcode scanning, and laser height compensation are seamlessly integrated into a single platform, reducing equipment footprint without sacrificing functionality. The option to select different dispensing valves extends application versatility, positioning it as a flexible offering among glue dispensing machine manufacturers. Its compact, industrial-grade construction facilitates easy adaptation to desktop manufacturing setups or automated assembly cells.

Performance and Operational Efficiency Enhancements

This automatic glue dispenser significantly improves repeatability and throughput in adhesive applications by automating calibration and inspection routines that traditionally require manual intervention. The vision programming software simplifies workflow setup, enabling technicians to rapidly configure dispensing paths while maintaining exacting precision standards. Its compact size and fast travel speeds enhance workstation productivity without requiring extensive physical space or infrastructure modification. The system’s ability to handle multiple dispensing materials and dispense methods supports varied end-user needs. Overall, this glue dispensing system offers optimized operational efficiency, reducing material waste and labor costs while supporting consistent process quality.

Specifications：

Product Applications:
Communication Equipment, LED, Semiconductor, VCM (Voice Coil Motor), CCM (Compact Camera Module), Micro Motor, 3C Consumer Electronics, Automotive Electronics.

Electronic Device Manufacturing Assembly Line Integration

In electronics production environments, precise adhesive application is crucial for component bonding and sealing. This glue dispensing machine is integrated into desktop assembly stations where space constraints are significant. Its automatic calibration and barcode scanning ensure positional accuracy and repeatability, maintaining stringent quality requirements. The multi-axis motion control combined with vision programming allows complex dispensing patterns on small components, facilitating high throughput with minimal error rates. By enabling consistent adhesive volume control, it ensures reliable functional performance of sensitive electronic assemblies. Additionally, the machine’s software interface supports synchronization with upstream and downstream process controls, optimizing system-wide efficiency.

Prototype Development and Small Batch Precision Dispensing

For R&D laboratories and small-batch prototyping sectors, the machine offers flexible, rapid programming through its vision-based control to accommodate diverse formulation testing and component designs. The Z-axis laser height compensation maintains dispensing accuracy on uneven substrates common in prototype samples. This automated dispensing system supports syringe, jet valve, piezo valve, and optional auger valve configurations to handle a broad range of adhesive viscosities. Its compact desktop footprint allows integration into existing lab benches without requiring additional floor space. The device ensures precise and repeatable fluid delivery critical for validating new adhesive formulations or bonding techniques, thereby accelerating product development cycles while maintaining high measurement fidelity.

FAQ

What dispensing methods are available on the Desktop Visual Dispensing Machine?

The Desktop Visual Dispensing Machine supports multiple dispensing options, including syringe, jet valve, piezo valve, and auger valve (optional). This flexibility allows users to select the optimal method based on specific application needs in the glue dispensing system.

How precise is the dispensing output of this automated dispensing system?

This automated dispensing system offers high repeatability with ±0.01 mm precision, achieved through servo or linear motor drives. Features like Z-axis laser height compensation and barcode scanning maintain consistent accuracy during operation.

What are the space requirements for installing the Desktop Visual Dispensing Machine?

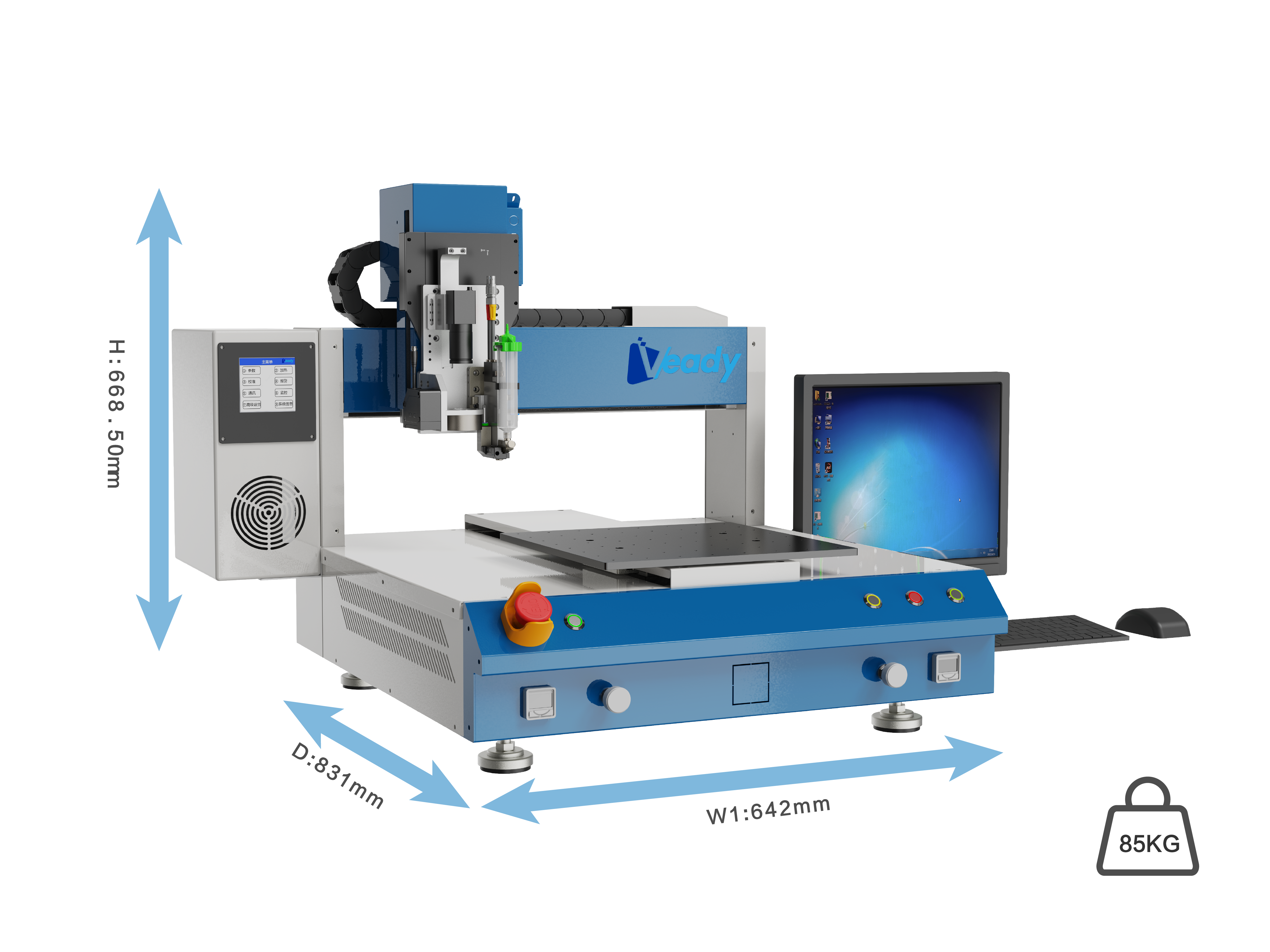

The machine is designed with a compact desktop footprint, measuring from 560×610×735 mm to 745×735×735 mm depending on the model. Its small size enables integration into production lines or benchtop environments without excessive space demands.

What kind of maintenance or calibration is needed for this glue dispensing machine?

The glue dispensing machine includes automatic calibration and appearance inspection functions to ensure reliable operation. Regular checks of the vision programming software and mechanical components maintain performance and extend the system’s service life.
