Product Features：
Adopting dual-track conveying and positioning for potting operations, and a two-component screw dynamic mixing valve, the equipment achieves high-precision proportioning and mixing of two-component adhesives. It integrates intelligent monitoring functions such as CCD vision positioning and laser height measurement, ensuring precise control over the entire process from glue supply to potting.|
Equipment Name |

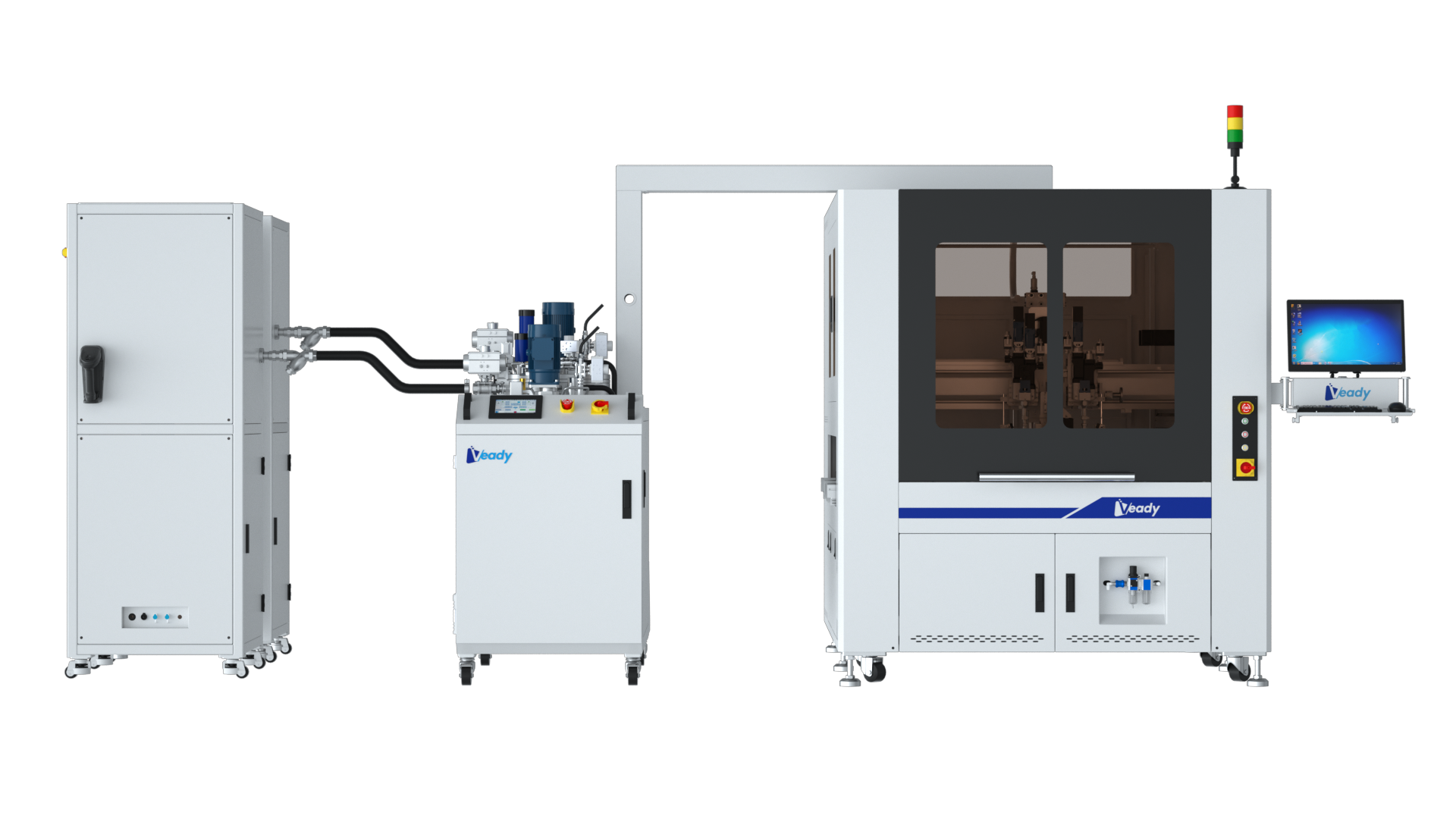

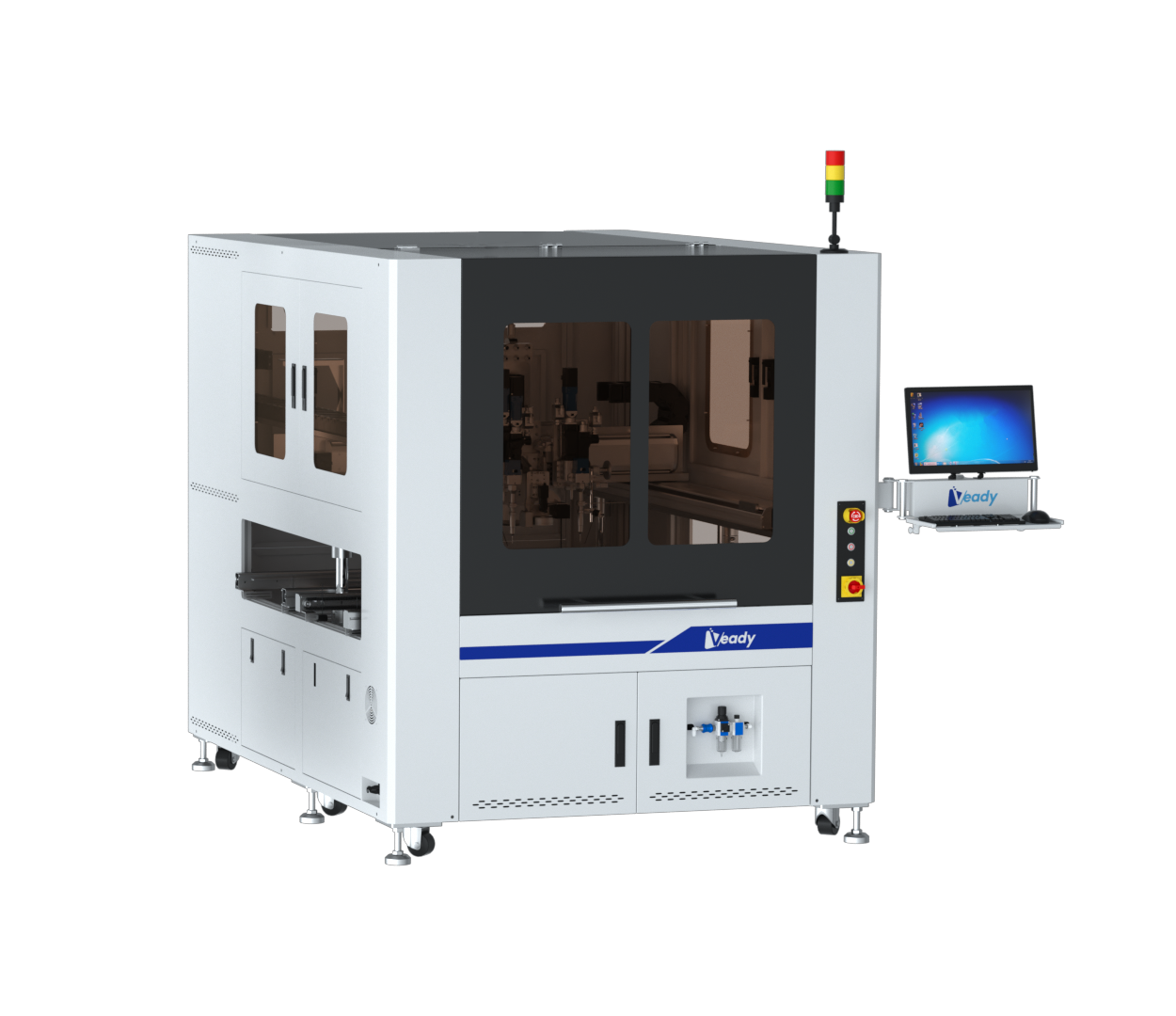

Dual-track Dual-head Vision Potting Machine |
|
Model Number |
Customized |
|
Effective Stroke |
X=950*Y=1400*Z=150mm |
|
Repeatability |
±0.05mm |
|
Mixing Ratio Precision |
≤±1% |
|
Dispensing Precision |
≤±1% |
|
Dispensing Range |
0.2-2g/s |
|
Rated Speed |
≤500mm/s(XY) / ≤200mm/s(Z) |
|
Power Rating |
AC380V、50Hz、7.5KW |
|
Operating Air Supply |
0.5-0.7Mpa |
|
Machine Weight |
Appx. 1200kg |
Suitable Adhesives：WEVO (Germany) Two-Component Polyurethane (PU).
Product Applications：Power tools, automotive door lock micro switches, tire pressure sensors, ultrasonic radars, etc.
