Product Features:

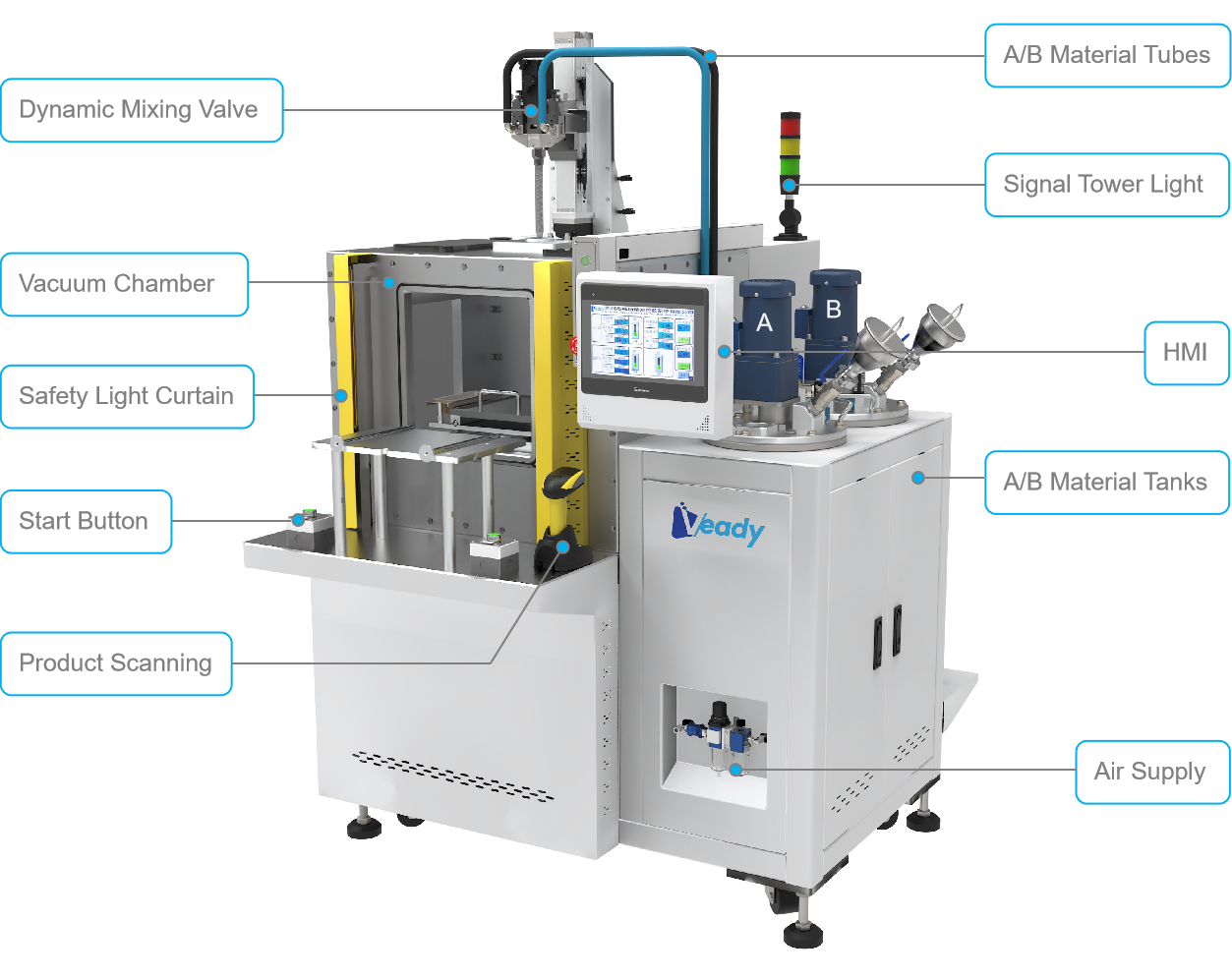

The A/B material tanks have a capacity of 10L and integrate functions including heating, stirring, liquid level monitoring, degassing, circulation, and reflux. The system employs a PLC + HMI control setup along with independently developed metering pumps and dynamic mixing valves, making it particularly suitable for small-batch, multi-variety production or R&D trial vacuum potting applications.
Specifications:
|
Equipment Name |
Integrated Vacuum Potting Machine |
|
Model Number |
VPS-221 |
|
Effective Stroke |
X=200*Y=200*Z=100mm |
|
Vacuum Pressure |
2mbar |
|
Vacuum System |
100-200m3/h |
|
Proportion Precision |
≤±3% |
|
Dispensing Precision |
≤±3% |
|
Dispensing Speed |
1-5g/s |
|
Material Preparation System |
MFS4020（A:10L / B：10L） |
|
Power Supply |
AC380V、50Hz、9.5KW |
|
Operating Air Supply |
0.5-0.7Mpa |
|

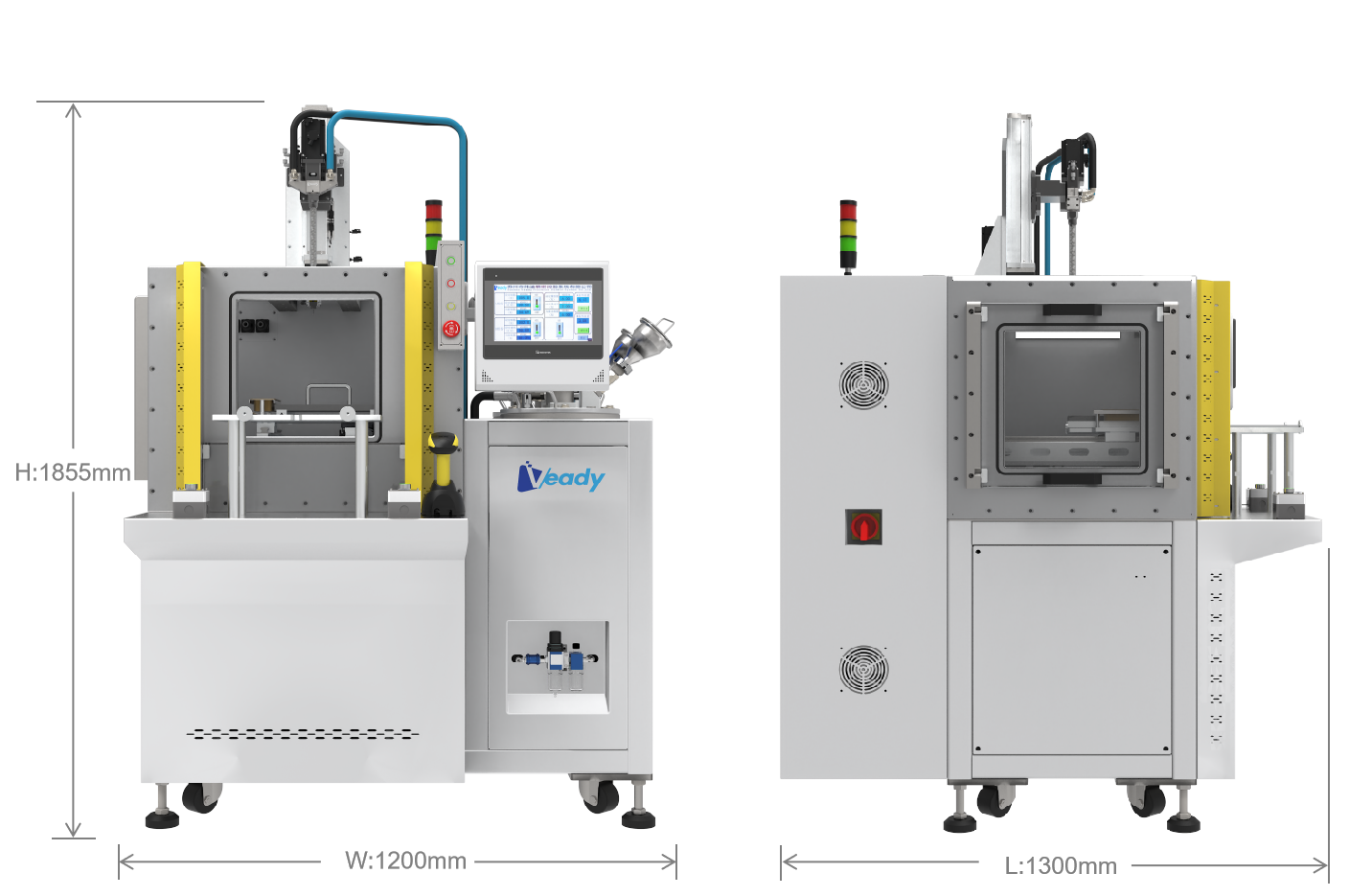

Overall Dimensions |
L=1300*W=1200*H=1855mm |
|
Machine Weight |
Appx. 430kg |
Suitable Adhesives：Epoxy resins, polyurethanes, silicone gels, thermally conductive silicones, organic potting compounds, and other dual-component ratio-mixed materials.
Product Applications：Automotive electronics, IGBT modules, capacitors, new energy motors, high-voltage packs, ignition coils, electromagnetic coils, motor stators, sensors, etc.
