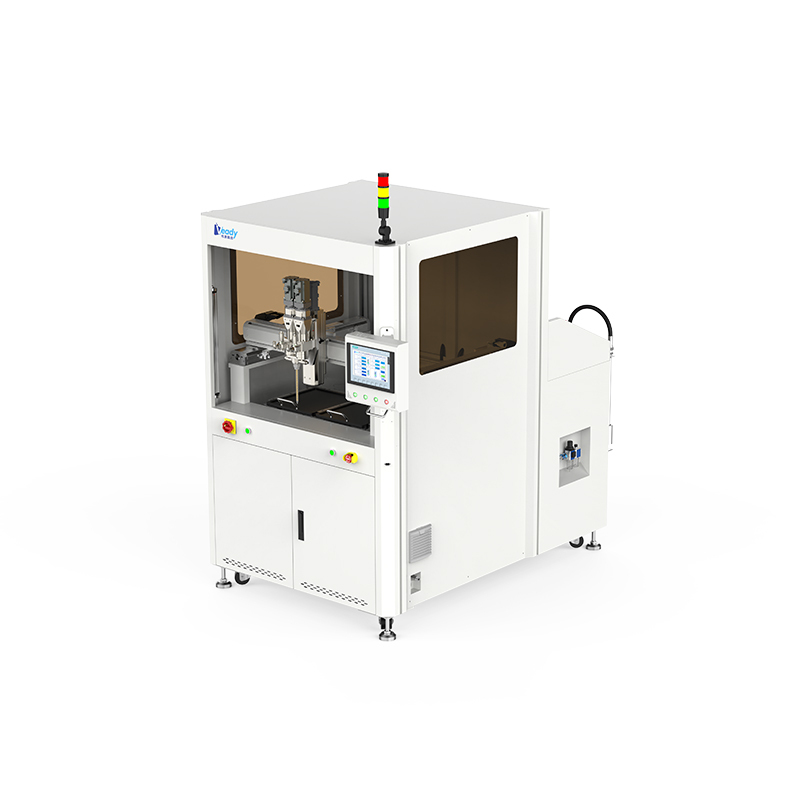

Offline Automatic Potting Machine

Functional Scope and Target Industries

Designed for manufacturing environments demanding high precision adhesive application, this automatic potting machine is optimized for engineering and production teams working with epoxy, polyurethane, and silicone adhesives. It addresses challenges in consistent dosing and complex trajectory potting, making it suitable for sectors such as automotive electronics, new energy motors, and sensor assembly. The machine’s integrated control platform and automation features cater to businesses seeking streamlined workflows with minimal manual intervention, improving throughput while maintaining consistent product quality and process reliability.

Technical Features and Operational Specifications

The core technological advantage lies in its gantry three-axis mechanical system combined with proprietary control software, delivering mechanical precision of ±0.02mm and dispensing accuracy within ±3%. It accommodates various feeding volumes from 10L to 60L tanks to match production needs, enabling dispensing speeds between 1–5g/s. Integrated AB material tanks include features for heating, stirring, liquid level monitoring, and defoaming to guarantee consistent adhesive quality throughout production runs. These specifications ensure reproducibility critical for process validation and compliance in regulated industries.

Applicability in Precision Potting Needs

This epoxy potting machine excels in applications requiring exact adhesive measurement and repeatable potting: automotive ignition coils, micro switches, and photovoltaic module encapsulation are prominent examples. It supports quantitative adhesive application for sealing, insulation, and vibration resistance, crucial in electronics and renewable energy manufacturing. By integrating seamlessly with existing assembly lines and tooling, the potting dispensing machine enhances production reliability and reduces material waste, delivering measurable value in high-volume, quality-sensitive manufacturing environments.

Product Features：

The A/B material tanks are equipped with heating, stirring, liquid level monitoring, defoaming, circulation, reflow, and other functions. The gantry three-axis system, combined with independently developed control software, enables precise proportioning of two-component adhesives and automated potting along complex trajectories.

Structural and System Integration Benefits

The design incorporates a modular gantry three-axis system facilitating precise multidirectional potting paths, underpinned by a comprehensive control software framework. The integrated AB tanks with heating and defoaming functions ensure adhesive consistency, addressing challenges typical of reactive two-component systems. This configuration supports multiple feeding options and volume adjustments according to production scale, reflecting thoughtful engineering by this potting machine manufacturer to optimize system adaptability and maintain operational continuity within complex production ecosystems.

Operational Performance and User-Centric Features

Users benefit from a user-friendly interface combined with automated material preparation and liquid level monitoring, minimizing manual inputs and process variability. The automatic potting machine delivers high dispensing speeds with consistent precision, significantly increasing throughput for batch production scenarios. Its compatibility with common adhesives enhances operational flexibility. Resulting improvements in application repeatability reduce rework rates and boost overall process efficiency, providing measurable return on investment for manufacturers requiring precise and cost-effective potting solutions.

Specifications：

Suitable Adhesives：Epoxy resin, polyurethane, silicone rubber and other two-component adhesives.

Product Applications：Servo motors, new energy motors, micro switches, OBC charging modules, automotive electronics, precision sensors, ignition coils, solar photovoltaics, etc.

Automotive Electronics Manufacturing Applications

In the automotive electronics sector, components such as ignition coils and control modules require durable insulation and protection against environmental factors. The glue potting machine is deployed to ensure controlled adhesive dispensing, enhancing component reliability and corrosion resistance. Its high precision dispensing, within ±3%, mitigates risks of over-application or voids, critical in complying with automotive industry quality standards. The machine’s ability to integrate into existing production workflows allows manufacturers to maintain high throughput while ensuring consistent potting quality.

Role in New Energy Motor Assembly Lines

New energy motor manufacturing processes demand precise insulation and bonding to optimize performance and longevity. This potting dispensing machine provides quantitative potting for stator and rotor components, integrating seamlessly with automated assembly cells. Its capacity for handling epoxy and polyurethane adhesives supports compliance with thermal and mechanical stability requirements characteristic of new energy applications. By automating the potting stage with exact proportioning and controlled dispensing speeds, it reduces cycle times and enhances product uniformity, key drivers in efficient large-scale production environments.

FAQ

What types of adhesives are compatible with the Offline Automatic Potting Machine?

The automatic potting machine supports two-component adhesives including epoxy resin, polyurethane, and silicone rubber. Its integrated systems ensure proper heating, stirring, and proportioning for these materials, guaranteeing consistent potting quality in diverse industrial applications.

Can the potting dispensing machine be customized for different adhesive volumes?

Yes, this potting dispensing machine offers flexible feeding options with tank volumes of 10L, 20L, 45L, and 60L. This adaptability allows users to select the appropriate capacity based on production scale, maintaining efficient and continuous adhesive application.

What installation requirements are necessary for the Offline Automatic Potting Machine?

The machine requires an AC220V, 50Hz power supply with 7.5KW power rating and an operating air supply of 0.5-0.7Mpa. Its dimensions (1200mm x 1800mm x 1865mm) and weight (~450kg) should be accommodated in a suitable workspace to ensure stable operation and ease of maintenance.

How is maintenance performed for the glue potting machine to ensure accuracy?

Routine maintenance includes monitoring liquid levels, cleaning mixing components, and verifying the gantry three-axis calibration. This preserves the glue potting machine’s ±3% dispensing precision and mechanical accuracy of ±0.02mm, supporting consistent adhesive quality over extended production cycles.
