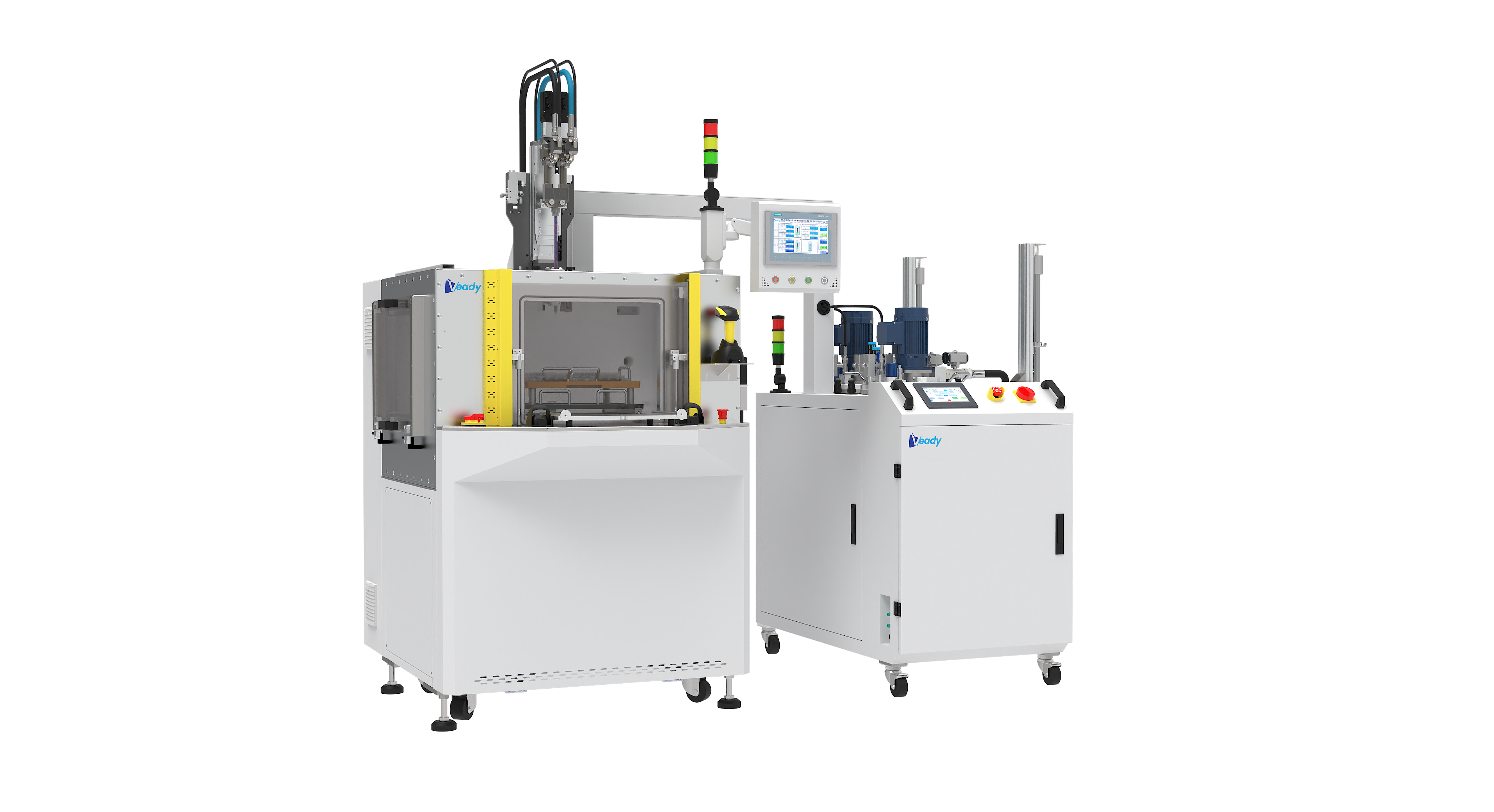

Off-line Vacuum Potting Machine

Functional Role and Target User Profile

The off-line vacuum potting machine is engineered to meet the exacting needs of manufacturers requiring controlled environment potting for electronic components. Designed primarily for industrial users such as automotive, energy, and electronics manufacturers, this system facilitates manual offline operation with automated mixing, metering, and dispensing of two-component adhesives. The equipment supports precision assembly tasks where bubble contamination must be prevented to ensure product reliability. As specialized vacuum potting equipment, it targets production settings that demand repeatable quality and operational flexibility without full production line integration.

Advanced Technical Features and Measurable Specifications

Incorporating a dual-stage vacuum potting system capable of achieving vacuum pressures as low as 2mbar, this machine enables bubble-free material processing critical for high-performance potting. Key features include A/B tanks with integrated heating, stirring, defoaming, and liquid level monitoring, all managed by proprietary control software with ±3% proportion and dispensing precision. The three-axis motion controls deliver highly accurate, automated dispensing at speeds from 1 to 5 g/s within a modular split design allowing separate material preparation and potting units. These specifications ensure enhanced consistency and efficient throughput for demanding adhesive applications.

Industry Applications and Practical Implementation Value

This vacuum potting machine manufacturer offers solutions optimized for industries such as automotive electronics, power modules, renewable energy components, and electromagnetic devices. Typical applications include potting for IGBT modules, capacitors, sensors, high-voltage coils, and stators, where stringent quality standards require bubble-free encapsulation. Its offline configuration supports batch processing or prototyping environments demanding precise, repeatable dispensing. Integration of vacuum potting equipment within existing workflows reduces material waste and improves product longevity, supporting manufacturers pursuing robust, conformal adhesive assemblies.



Product Features:

A full vacuum environment ensures bubble-free potting of products. The A/B material tanks are equipped with heating, stirring, liquid level monitoring, defoaming, circulation, reflow, and other functions. The three-axis motion system, combined with independently developed control software, enables on-demand proportioning, mixing, and quantitative automatic vacuum potting operations for two-component adhesives.

Structural and System Integration Benefits

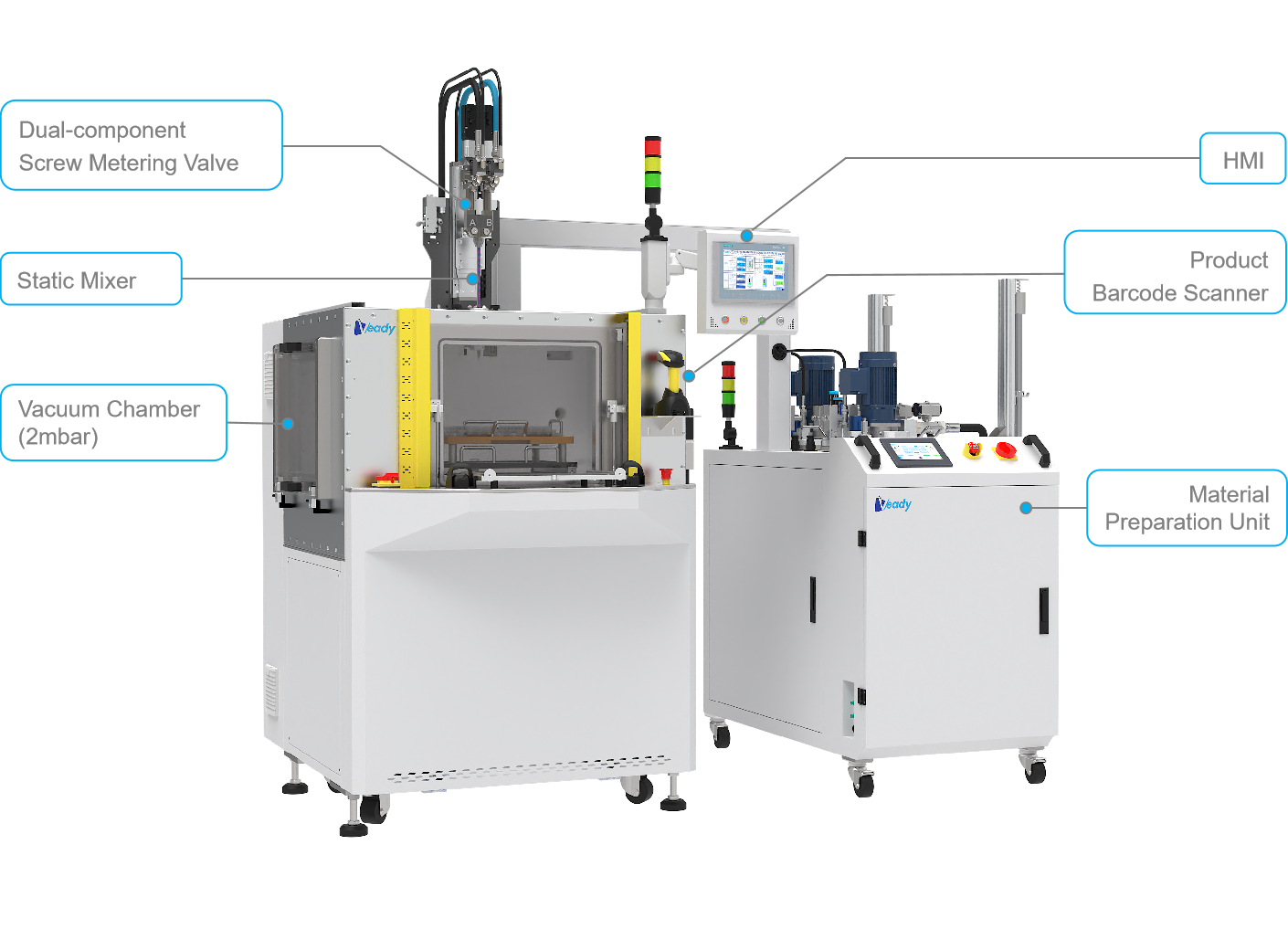

The vacuum potting machine employs a modular design separating material preparation from potting operations, enhancing maintenance and operational flexibility. This system features durable A/B tanks with automated stirring and heating to maintain adhesive viscosity, supported by a dual-stage vacuum potting system that ensures high vacuum stability down to 2mbar. Its three-axis motion integrated with proprietary control software delivers precise positioning and dosing with ±3% accuracy. Such structural choices optimize reliability and allow the equipment to be customized or integrated into various production lines, underscoring advantages typical of advanced vacuum potting machines.

Operational Performance and User-Centric Value

With automated metering, mixing, and dispensing under full vacuum conditions, this vacuum potting machine reduces air entrapment risks, enhancing final product quality. The intuitive control interface supports offline manual operation while delivering repeatable quantitative potting, beneficial in R&D and low-volume production setups. Dispensing speed variability (1–5 g/s) combined with high precision enables adaptability to diverse adhesive materials and potting requirements. Users benefit from enhanced process control, reduced material waste, and minimized rework frequency, reflecting significant value in process reliability and overall manufacturing efficiency within vacuum potting applications.

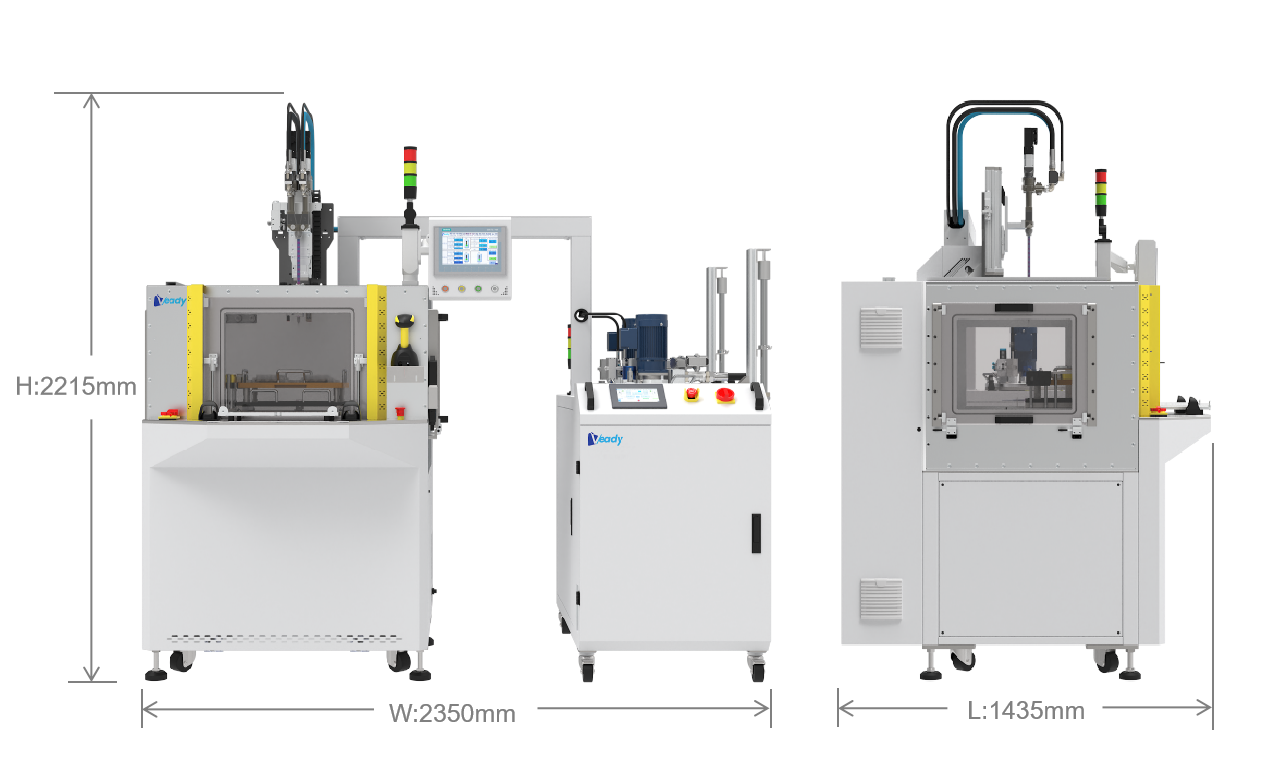

Specifications：

Suitable Adhesives：Epoxy resin, polyurethane, silicone gel, thermally conductive silicone, organic potting adhesive, and other two-component proportioning and mixing materials.

Product Applications：Automotive electronics, IGBT modules, capacitors, new energy motors, high-voltage coils, ignition coils, electromagnetic coils, motor stators, sensors, etc.

Vacuum Potting in Automotive Electronics Manufacturing

Within automotive electronics production, the vacuum potting equipment plays a critical role in encapsulating modules such as IGBT and ignition coils. Operating under strict quality standards for thermal stability and electrical insulation, the equipment’s full vacuum environment ensures bubble-free potting, which is essential to preventing failure modes in high-power electronics. Its modular system integrates with manual production stations or offline lines, allowing precision adhesive application as part of comprehensive assembly workflows. This enables automotive manufacturers to achieve consistent product quality while maintaining flexibility in process scheduling and materials handling.

Application for Renewable Energy Component Potting

In the renewable energy sector, the vacuum potting machine is instrumental in potting new energy motor components and stators, where environmental resistance and electrical insulation are critical. The machine’s capability to handle various two-component adhesives with precise proportioning under low vacuum conditions supports compliance with stringent industry regulations. Used in R&D and small batch production, the vacuum potting system facilitates reliable encapsulation processes that improve component durability and performance. Integration with material preparation modules streamlines workflow continuity from adhesive mixing to potting, enhancing operational efficiency in renewable energy manufacturing settings.

FAQ

What types of two-component adhesives are compatible with this vacuum potting machine?

The Off-line Vacuum Potting Machine supports various two-component adhesives, including epoxy resin, polyurethane, silicone gels, thermally conductive silicone, and organic potting adhesives. Its precise metering and mixing functions ensure accurate handling of these materials during the vacuum potting process.

Can the vacuum potting machine be customized for specific production needs?

Yes, Suzhou Veady offers customization options for the vacuum potting machine to suit different applications. Features such as material tank capacities, heating, stirring systems, and dispensing precision can be tailored to meet specific industrial requirements for efficient potting and adhesive dispensing.

What installation and operation support does Veady provide for their potting machines?

Veady supplies detailed installation manuals and training for the automatic potting machine to ensure efficient setup and use. Their technical support team assists clients through commissioning and offers guidance on operation, maintenance, and troubleshooting to maximize machine performance.

How is maintenance managed for the vacuum potting equipment?

Routine maintenance of the vacuum potting equipment involves regular inspection of vacuum seals, cleaning of material tanks with heating and stirring, and calibration of dispensing systems. Veady provides technical support and documentation to help operators maintain machine reliability and consistent potting quality.
