Product Features:

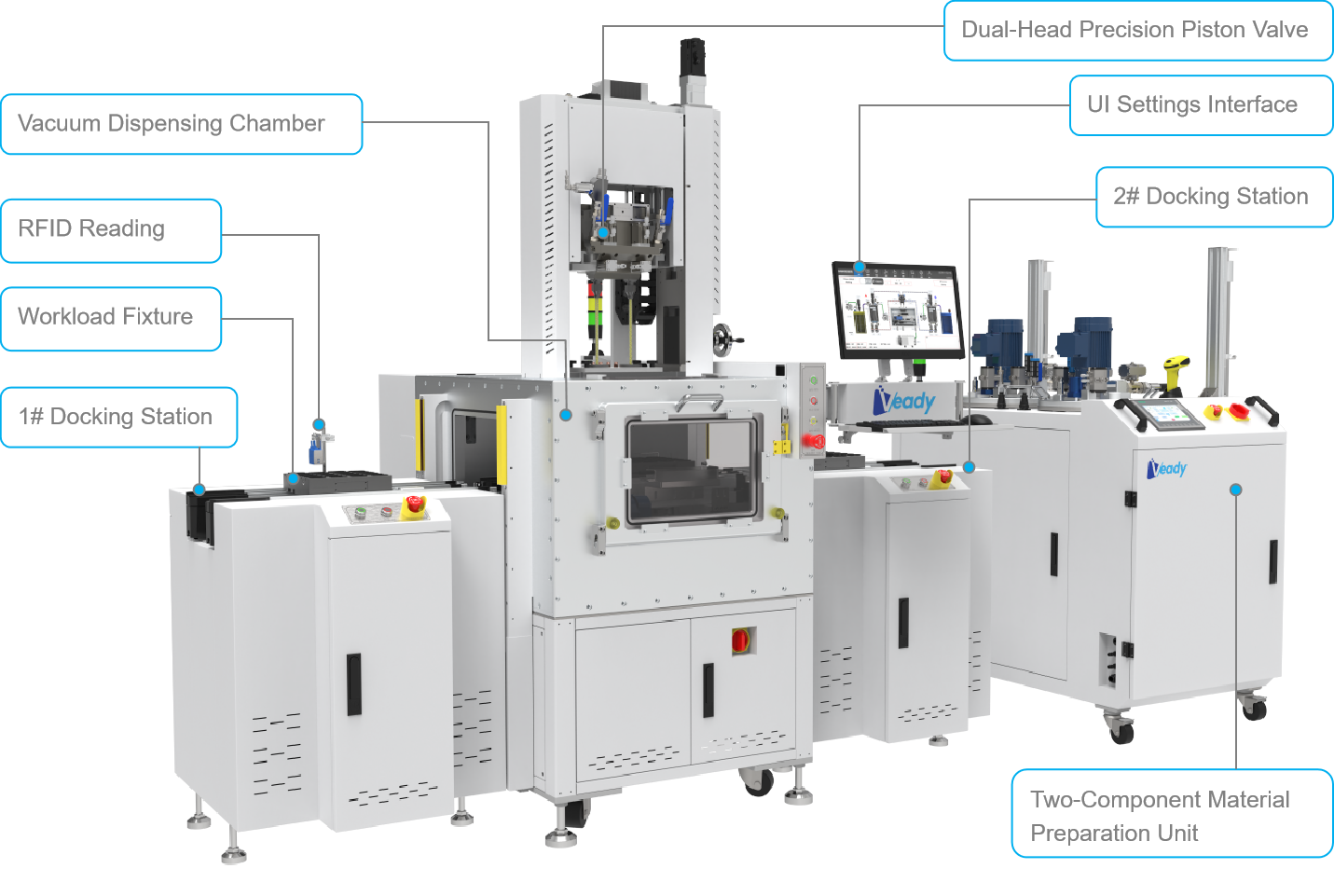

A full vacuum environment ensures bubble-free product potting. The A/B material tanks are equipped with heating, stirring, liquid level monitoring, defoaming, circulation, reflow, and other functions. The three-axis motion system, combined with independently developed control software, enables on-demand proportioning, mixing, and quantitative automatic vacuum potting operations for two-component adhesives.
Specifications：
|
Equipment Name |
In-line Vacuum Potting Machine |
|
Model Number |
VPS-541 |
|
Effective Stroke |
X=500*Y=400*Z=100mm |
|
Vacuum Pressure |
1-2mbar |
|
Vacuum System |
100-300m3/h |
|
Proportion Precision |
≤±3% |
|
Dispensing Precision |
≤±3% |
|
Dispensing Speed |
3-10g/s |
|
Material Preparation System |
MFS4545（A：45L / B：45L） |
|
Power Rating |
AC380V、50Hz、12.5KW |
|
Operating Air Supply |
0.5-0.7Mpa |
|

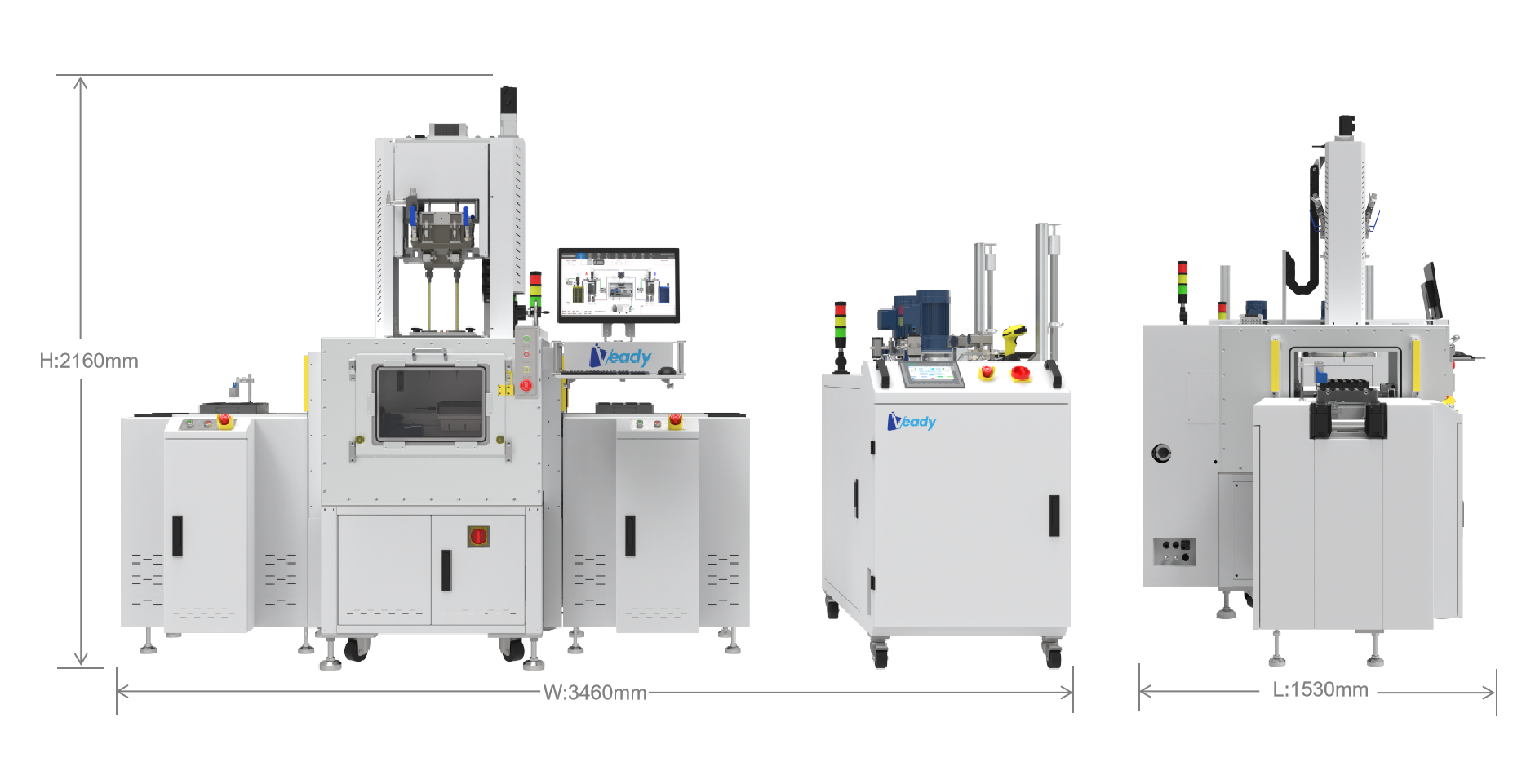

Overall Dimensions |
VPS-541：L=1530*W=2230*H=2160mm MFS4545：L=1250*W=700*H=1250mm |
|
Machine Weight |
Appx. 450KG + 280KG |
Suitable Adhesives：Epoxy resin, polyurethane, thermally conductive silicone, organic potting compound and other two-component proportioned mixing materials.
Product Applications：Automotive electronics, capacitors, new energy motors, high-tension coils, ignition coils, electromagnetic coils, motor stators, sensors, etc.
