Product Features：

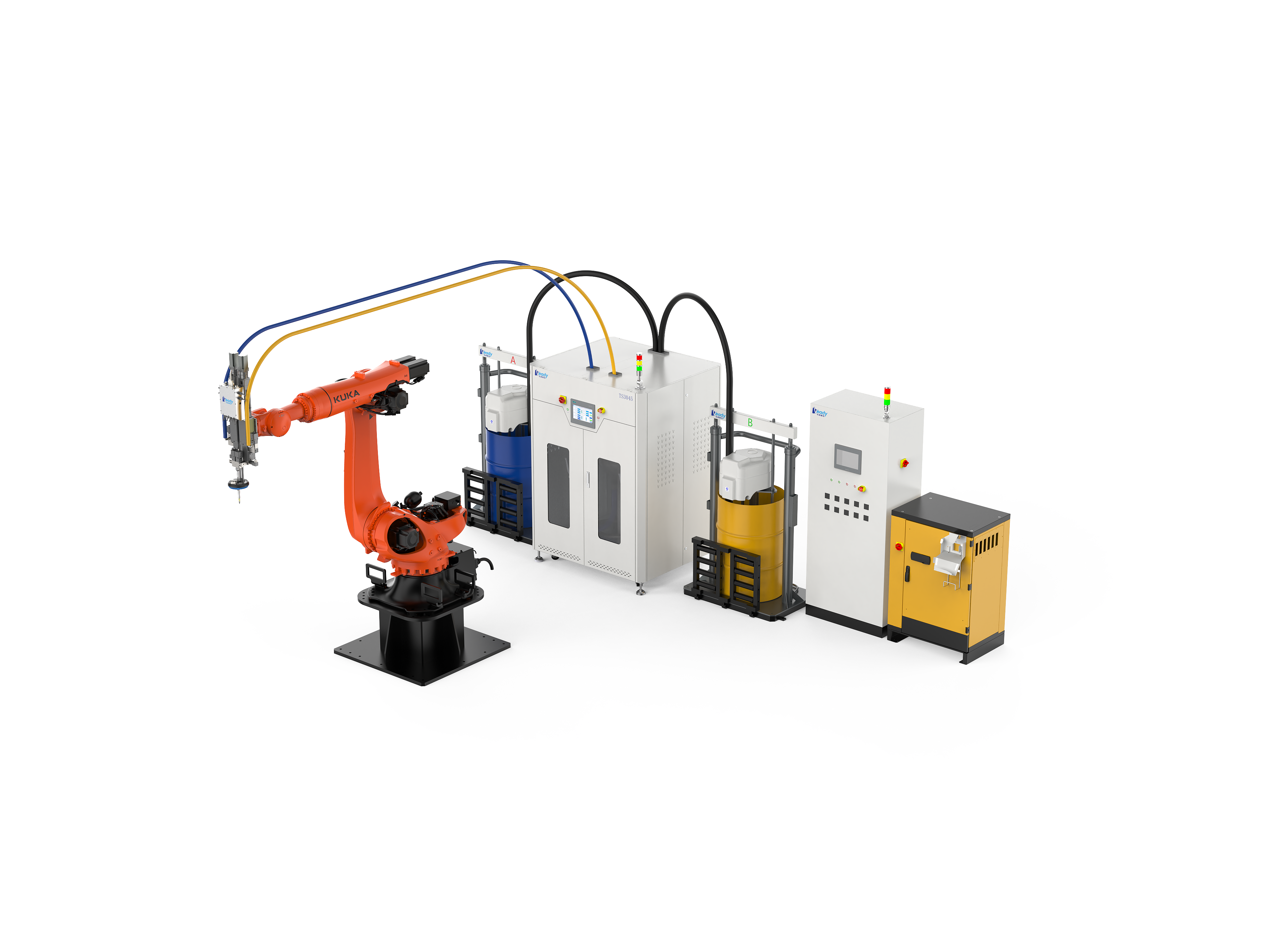

The system integrates a 55-gallon pressure plate feeding primary pump, NEV4545 transfer system, 6-axis robot, and 3D bead inspection module. Utilizing static mixing dispensing technology, it ensures high precision and consistency in two-component adhesive application.
Specifications：
|
Equipment Name |
Robotic Pack Dispensing Station |
|
Model |
Customized |
|
Operating Mode |
6-Axis Robot |
|
Operating Capacity |
Working Radius：2100mm，Payload：120KG |
|
Mechanical Accuracy |
±0.05mm |
|
Metering System |
Dual-Cartridge Dispenser 1:1（Single Shot Volume: 400cc） |
|
Mixing Ratio Accuracy |
≤±5% |
|
Dispensing Accuracy |
≤±5% |
|
Dispensing Rate |
50-400cc |
|
Power Supply |
AC380V、50Hz、12.5KW |
|
Air Supply |
0.5-0.7Mpa |
|
Dimensions |
L=2400*W=1200*H=2150mm |
|
Weight |
Appx. 1750KG |
Suitable Adhesives：Two-component thermal conductive adhesives, sealants, structural adhesives, and other dual-cartridge materials.
Product Applications：Power batteries, energy storage batteries, PACK enclosures, battery modules, solar photovoltaics, etc.
