Product Features：
Features a modular dual-airpath adhesive valve system with motor-driven mixing blades for high efficiency and easy replacement. Suitable for medium-low viscosity adhesives or materials with significant ratio disparities. Optional electric heating and air cooling functions are available.
Specifications：
|
Product Name |

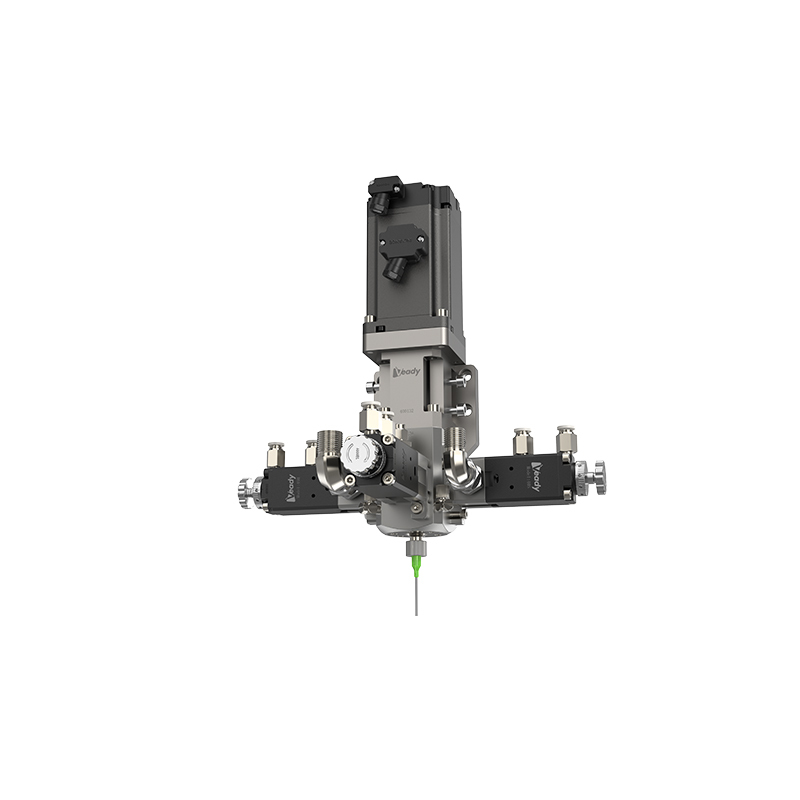

DVS Dynamic Valve (Forced-Cleaning Version) |
||
|
Model |
DV2030 |
DV2050 |
DV3070 |
|
Flow Rate |
1-15ml/s |
1-25ml/s |
1-40ml/s |
|
Drive Pressure |
0.4MPa |
||
|
Operating Frequency |
240 cycles/min |
||
|
Drive Component |
Aluminum Alloy |
||
|
Fluid Component |
SUS304 |
||
|
Needle Material |
Tungsten Steel |
||
|
Stirring & Mixing |
Plastic Chamber / Plastic Blades |
Plastic Chamber / Metal Blades |
Plastic Chamber / Metal Blades |
|
Inlet Size |
G1/4 |
G1/4 |
G1/4 |
|
Valve Weight |
3.0KG |
3.0KG |
4.5KG |
|
Overall Dimensions |
160*100*235mm |
160*100*235mm |
250*160*310mm |
