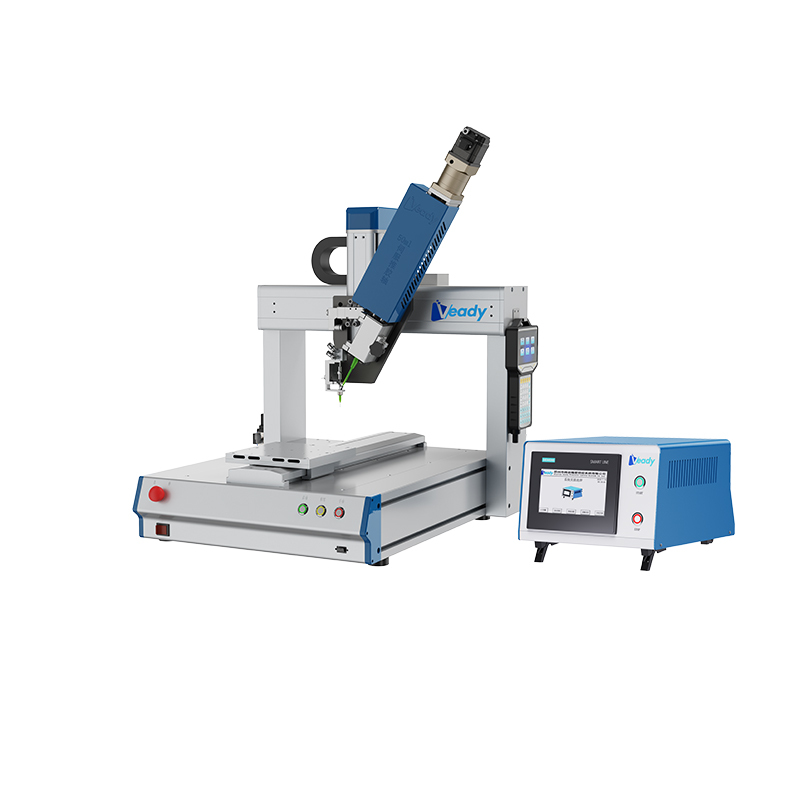

Servo-driven Dispensing Machine

Functional Application and Intended Users

The Servo-driven Dispensing Machine is engineered as a compact desktop automated dispensing system designed for manufacturing environments where precise metering of two-component adhesives is critical. Targeted primarily at electronics, semiconductor, automotive, and micro-mechanical assembly sectors, this solution enables technicians and production engineers to achieve consistent glue deposition with varied mixing ratios of 2:1, 1:1, and 10:1. The system’s servo-driven mechanism and multiple dispensing modes, including syringe, jet valve, and screw valve, offer high adaptability for specialized production lines needing steady output and minimal material waste.

Technical Innovation and Performance Specifications

This glue dispensing machine integrates a servo motor with a ball screw drive to ensure high positional repeatability, rated at ±0.02mm, which is essential for micro-scale adhesive applications demanding tight tolerances. The machine supports 3 or 4 motion axes, with working strokes from 200×200×100 mm up to 500×500×100 mm depending on the model, and motion speeds reaching 800 mm/sec on the XY axes. Its proprietary control system operates independently and is programmed via a handheld teach pendant, facilitating flexible operation and complex dispensing patterns. Additionally, anti-drip cutoff valve technology curtails glue leakage, maintaining product quality and reducing cleanup time.

Industrial Integration and Practical Utility

Widely applicable across industries such as semiconductor packaging, LED assembly, automotive electronics bonding, and 3C consumer electronic device fabrication, this automatic glue dispenser supports precise application of multi-ratio two-component adhesives tailored to high-volume low-defect production environments. It enhances workflow efficiency by integrating seamlessly with existing production lines, enabling reliable repeatability and reduced downtime. Moreover, its small footprint and modular design make it an ideal component in lab prototyping or pilot runs where space optimization and adaptability to various adhesive types are mandatory.

Product Features:

Desktop servo dispensing machine is suitable for 50ml two-component adhesives with ratios of 2:1, 1:1 and 10:1. It adopts servo mechanical glue pushing and anti-drip cutoff valve glue control technology, enabling precise and stable dispensing.

Structural and System Design Strengths

The machine’s core design centers on a robust servo-driven spindle paired with a ball screw mechanism to offer stable and precise positioning integral to an advanced glue dispensing system. This modular architecture supports multiple dispensing valves, including syringe, jet, and screw types, providing configurability based on application requirements. Its compact desktop footprint and independent R&D control system reflect deliberate engineering choices to maximize integration compatibility while maintaining ease of maintenance. These elements combined establish the product as a scalable and reliable solution within the portfolio of leading glue dispensing machine manufacturers.

Operational Performance and User-Centric Benefits

Performance-wise, the automatic control of glue flow with anti-drip mechanisms ensures consistent output and minimizes material wastage, directly enhancing operational efficiency. The handheld teach pendant offers a user-friendly programming interface that reduces operator learning curves and streamlines production setup times, promoting productivity in manufacturing scenarios. Repeatability at ±0.02mm and motion speeds up to 800 mm/sec enable confident deployment in precision-critical tasks. Overall, this automated dispensing system delivers reliability and flexibility, aligned with industrial demands for accuracy and throughput in controlled adhesive application processes.

Specifications：

Product Applications: Communication Equipment, LED, Semiconductors, VCM, CCM, Micro Motors, 3C Consumer Electronics, Automotive Electronics.

Precision Electronics Assembly Applications

In electronics manufacturing, including semiconductor packaging and micro motor adhesive application environments, precise volume control and positioning are paramount. The glue dispensing machine performs accurate dosing of two-component adhesives necessary for hermetic sealing and bonding, ensuring electrical performance and durability. Its anti-drip system reduces contamination risk, while its adaptability to various valve types supports diverse component geometries. Integrated into production lines, this solution aligns with quality management protocols and helps meet stringent industry standards for assembly repeatability and product integrity.

Automotive Electronics Sealing and Bonding Workflow

Within automotive electronics production, the requirement for robust sealing and bonding applies critical stresses related to environmental exposure and vibration. The Servo-driven dispensing system provides controlled application of multi-ratio adhesives crucial for sensor encapsulation and connector sealing. Its compact form factor and high precision support integration with automated production cells, facilitating synchronized operation alongside other assembly robots or inspection systems. Compliance with industrial automation norms ensures consistent adhesive distribution, contributing to improved product reliability and lifecycle performance.

FAQ

What types of adhesives are compatible with the Servo-driven Dispensing Machine?

The machine handles 50ml two-component adhesives with mix ratios of 2:1, 1:1, and 10:1. This ensures precise application for materials commonly used in electronics, automotive, and semiconductor industries, making it a versatile glue dispensing machine for various industrial needs.

Can the dispensing machine be customized to fit specific production requirements?

Yes. The system offers multiple dispensing methods including syringe, jet valve, and optional screw valve configurations. Programmable via a handheld teach pendant and supporting 3 or 4 motion axes, this automated dispensing system adapts flexibly to diverse manufacturing processes.

What installation or space considerations are needed for the machine?

With a compact desktop design and models ranging from WD-T221S to WD-T551S, the machine fits varying workspace sizes while maintaining industrial-grade precision. Its lightweight build (40–75 kg) and footprint optimize floor space, facilitating installation in production lines or laboratory settings.

How is maintenance managed for sustained reliability and accuracy?

Routine checks of the servo-driven spindle, ball screw mechanism, and anti-drip cutoff valves are recommended to maintain ±0.02mm repeatability. The proprietary control system supports diagnostics, and Veady provides technical support to ensure long-term operation of your glue dispensing machine manufacturer solution.
