Product Features：
This system features a unique horizontal airflow and sealed design that ensures uniform temperature stability while saving space and energy. Equipped with intelligent temperature control and servo positioning, it supports automated data monitoring for high-quality curing of conformal coating and potting adhesive.
Specifications：
|
Equipment Name |

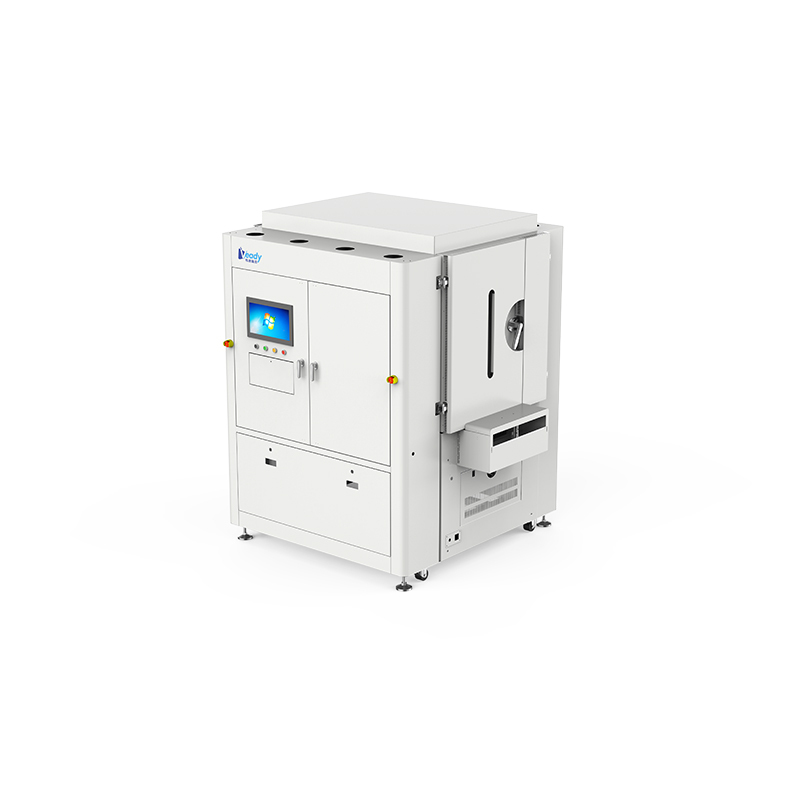

Vertical Curing Oven |
|
Model Number |
WD-5010 |
|
Overall Dimensions |
X=1800*Y=1700*Z=2200mm |
|
Heating Zones |
2-6 Heating Zones |
|
Temperature Range |
Ambient - 300℃ |
|
Temperature Accuracy |
≤±3℃ |
|
Loading Capacity |
16-48 tiers (product height dependent) |
|
Power Supply |
AC380V、50Hz、30KW |
|
Air Supply |
0.5-0.7Mpa |
|
Weight |
Appx. 1500KG |
Applications：Smartphones, laptop & PCB conformal coating, IGBT semiconductors, automotive sensors, AB potting, etc.
